1991 Ford Taurus SHO connector pinout and wire colors to pinouts

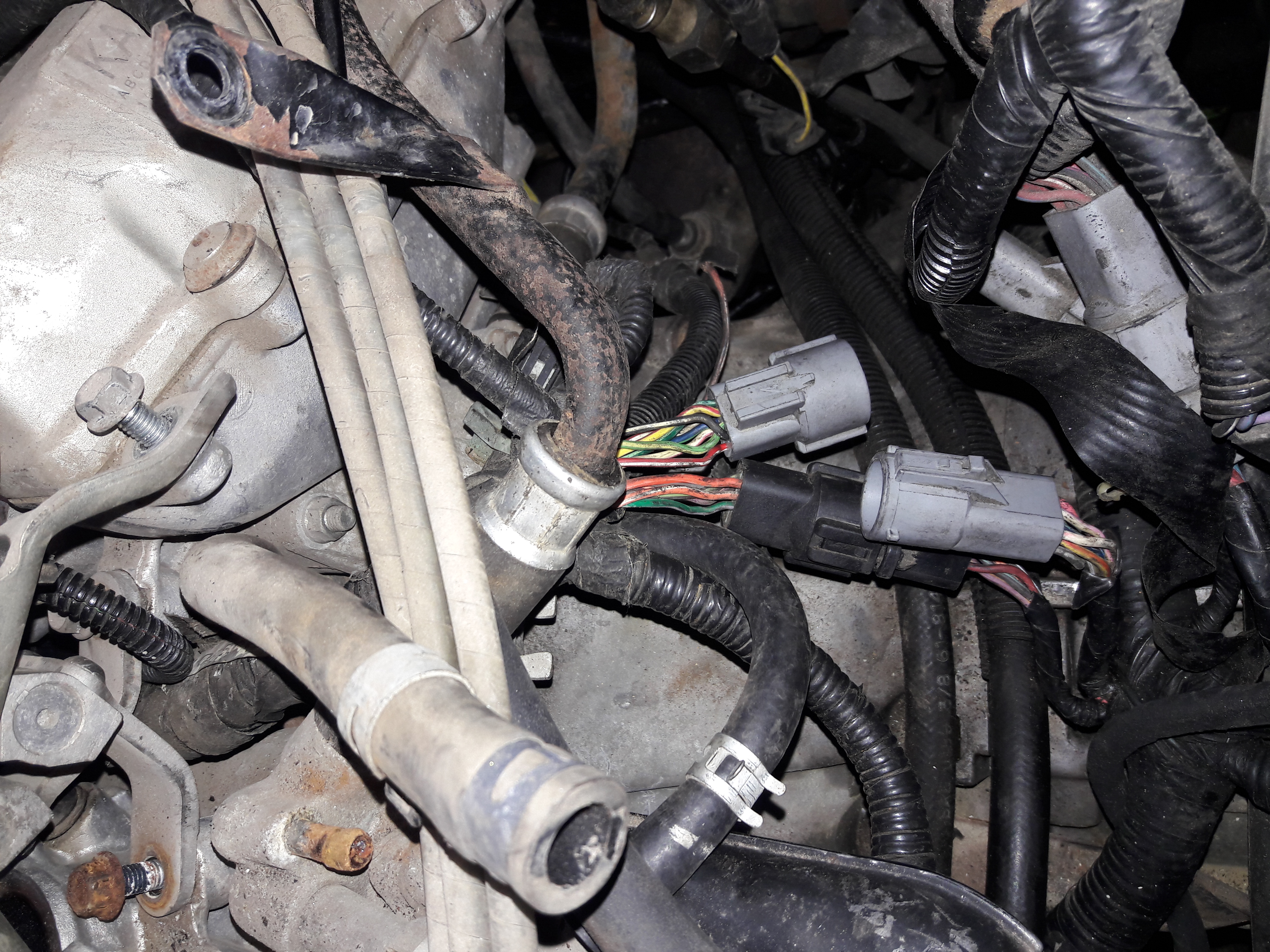

by pop91sho on Feb 22 2018, 2:18 AMSo this is my dilemma. I'm trying to locate the connector pinout and wire colors to 2 connectors from engine wire harness to the body harness..the connectors meet over the transmission. Attaching a pic. I've tried everywhere, Ford, Alldata, Mitchell, Chilton, Haynes. I'm stumped..help
You must be signed in to reply or vote on this post.
DID YOU TRY OVER ON SHO FORUM ? https://shoforum.com/index.php
AS FOR THE WIRING PINOUTS YOU WILL NEED THE WIRE DIAGRAMS NOT THE SERVICE MANUAL
THIS MANUAL SHOULD WORK FOR YOU
https://www.ebay.com/itm/1991-FORD-SHO-TAURUS-MERCURY-SABLE-ELECTRICAL-VACUUM-TROUBLESHOOTING-MANUAL-EVTM/292385436220?hash=item441387b23c:g:IWwAAOSwk1haQwhP
https://shoforum.com/index.php
